Product Details

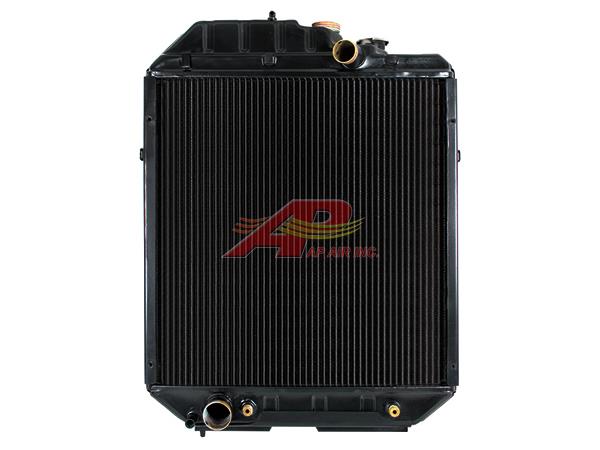

Item # AR2139

Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Fits TS90, TS100, TS110, TS115, 5640, 6640, 7740 Ford/NW Tractors With A/C.

5/8" Heater Bypass Connection to the Left of the Outlet Connection, Oil Cooler #6 O Ring Face Seal with 11/16" x 16 UNF Threads

F0NN8005AE15M, 82015095, 82015101, 82013164, 82015097, F0NN8005AA15M, F0NN8005AC15M, 82015103, F0NN8005AB15M, F0NN8005AD15M, 82011374

CORE HEIGHT	20 1/8"
CORE WIDTH	19 1/8"
OVERALL HEIGHT	27 1/2"
OVERALL WIDTH	20 1/4"
OUTLET HOSE SIZE	1 3/4"
INLET HOSE SIZE	1 1/2"
FINS PER INCH	8 Flat Fin
NUMBER OF ROWS	5
OIL COOLER	Yes, #6 O-Ring Face Seal with 11/16" x 16 UNF - 9 1/4" Centers
