Product Details

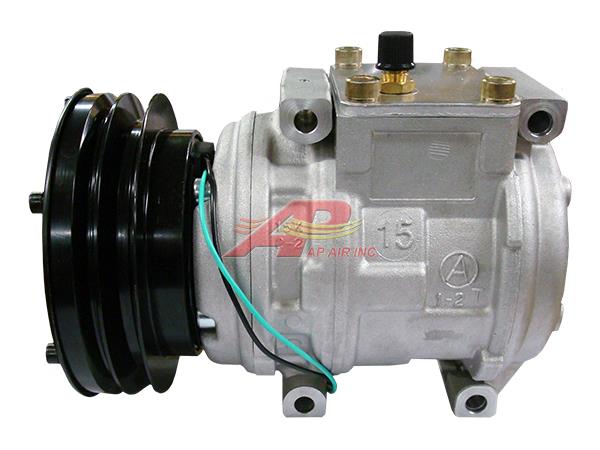

Alternative Denso Compressor 10PA15C - 134mm, Single Groove Clutch, 24V

Click for additional views

Alternative Denso Compressor 10PA15C - 134mm, Single Groove Clutch, 24V

Item # 503-12243

Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Can use Original Denso Compressor - 503-1224

Must use Original Manifold

OEM Numbers

154-0490

Specifications

HEAD TYPE	N/A
OIL TYPE	R134 Pag 46
CLUTCH DIAMETER	134mm, 5.25"
GROOVES	1
BELT WIDTH	A, 1/2"
COIL POSITION	N/A
OIL QUANTITY	See Manufacture
VOLTAGE	24
COMPRESSOR TYPE	10PA15C
GAUGE LINE	2.755", 70.00mm

Related Items

10PA15C,E, 10PA17A, C, K, VC, 10PA20C Manifold Gasket - John Deere - HD Black

440-981B

OE Denso Compressor 10PA15C - 134mm, 1 Groove Clutch, 24V

503-1224

New 10PA17C Clutch with 24V Coil, 5.3" with Single Groove

600-3012

OE Denso Compressor 10PA15C - Without Clutch, Short Body Mount

503-1221

# 8 Hose Fitting O-Ring, 10pk

440-013

# 10 Hose Fitting O-Ring, 10pk

440-015

10PA17C Front Seal

440-508

Clutch Bearing for 10PA15, 10PA17, 10PA20, TV12C, TV12EC, TV12SC, TV14C, 10S17C Compressors

440-948

10PA15C,E, 10PA17A, C, K, VC, 10PA20C Manifold Gasket - John Deere

440-981

Komatsu 1 Wire Connector

110-201
